Inefficient bottle organization can really slow down your packaging lines, which can cause you to miss production. Bottle unscramblers automate the process of getting the bottles in the right position, so you can handle them quickly and efficiently.

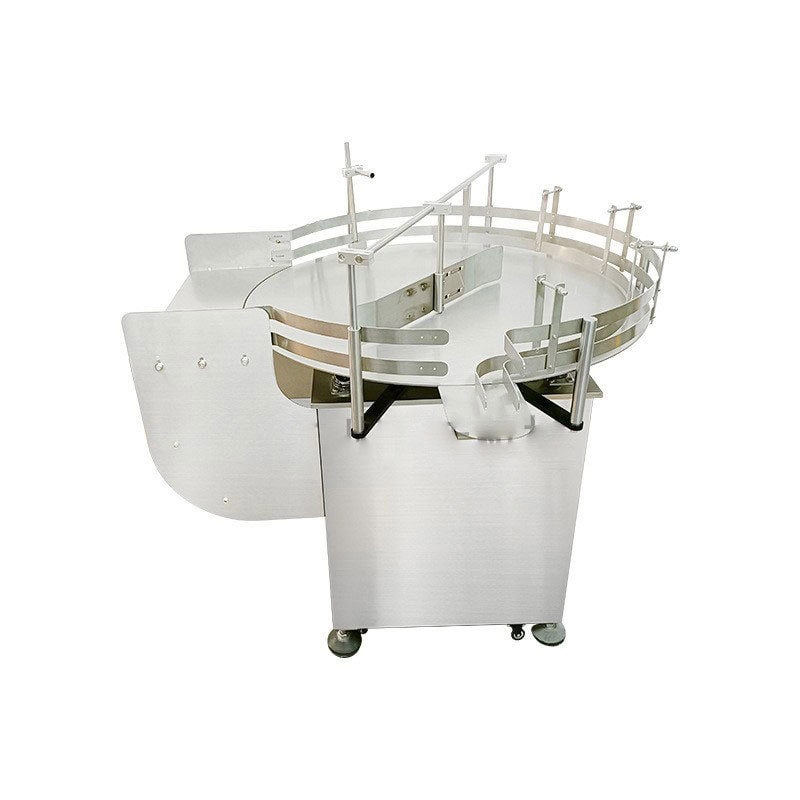

The principle of a bottle unscrambler machine is to take the bottles oriented in random directions and get them standing up on a conveyor so you can do the next thing to them. It does this using centrifugal force, sorting mechanisms, and orientation devices.
To optimize your packaging line, you need to understand how a bottle unscrambler works.
How Bottle Unscrambler Machines Work
Bottle unscramblers are a critical part of high-speed production lines. What these machines do is take bottles fed in bulk, usually in all different kinds of directions, and get them standing up on a conveyor so you can do the next thing to them. The process starts with bottles being loaded into a hopper.
When bottles go into the hopper, they go onto a rotating disk or some type of conveyor system. This rotation applies centrifugal force, which helps get the bottles into channels or pockets that are designed to get the bottle in the right position. There are sensors or air jets that detect any bottles that are not in the right position and send them back for re-orientation. The bottles that are in the right position are then sent out onto a conveyor so you can do the next thing to them.
Key Components of a Bottle Unscrambler
Hopper
The hopper is where the bottles are first loaded in bulk. This component stores and controls the bottle flow onto the unscrambling mechanism, ensuring a continuous supply of bottles.
Rotary Disk
The rotary disk is responsible for distributing the bottles evenly. As it spins, bottles are guided into pre-determined slots or pockets, where they begin to be oriented correctly.
Guides and Channels
These are essential for bottle orientation. Depending on the machine’s configuration and the shape of the bottles, different guide rails and channels help ensure the bottles are correctly aligned.
Sensors and Air Jets
To maintain efficiency, sensors detect misaligned bottles. Air jets can blow improperly oriented bottles back into the hopper for reprocessing, ensuring only correctly positioned bottles make it through the line.
Importance of Centrifugal Force in Bottle Unscramblers
Centrifugal force is the primary principle behind most bottle unscramblers. As bottles are placed onto the rotating disk, the outward force pushes them against the guiding rails. This helps in aligning the bottles into the appropriate pockets or channels.
The rotating motion ensures a constant flow of bottles moving through the unscrambler, while the centrifugal force helps separate and position each bottle. This process is highly efficient and suitable for high-speed production lines, making it a preferred choice for industries that handle large volumes of bottles daily.
Flexibility and Customization
Bottle unscramblers are highly versatile machines that can handle various bottle shapes, sizes, and materials. The flexibility in design allows for customization to suit different production requirements. Adjustments can be made to the guide rails, sorting channels, and sensors to accommodate various bottle types, from small vials to large containers.
Modern unscramblers also allow integration with other machinery, such as fillers, labelers, and cappers, to streamline the entire packaging process. Programmable sensors and customizable settings enable the machines to handle specific bottles without causing damage, making them ideal for fragile materials like glass.
Advantages of Using a Bottle Unscrambler
Increased Efficiency
Automating the bottle arrangement process significantly reduces manual labor. Bottles are sorted and aligned quickly, ensuring that production lines can run at higher speeds without interruption.
Consistent Orientation
Bottle unscramblers ensure that every bottle is oriented correctly before it enters the next phase of the production line. This reduces errors and prevents bottlenecks, keeping the entire process running smoothly.
Cost-effectiveness
By reducing the need for manual sorting, unscramblers cut labor costs and minimize the risk of human error. The machines are also designed to handle a wide variety of bottle types, reducing the need for multiple systems.
Scalability
Bottle unscramblers can be scaled according to production needs. Whether a company is processing a few thousand bottles or millions, unscramblers can be adjusted to handle the workload without requiring significant modifications.
Common Industries Using Bottle Unscramblers
Bottle unscramblers are used across a wide range of industries that require efficient packaging solutions. Some of the most common industries include:
Pharmaceuticals
Pharmaceutical companies use bottle unscramblers for small vials and medicine bottles. The unscramblers ensure these containers are consistently oriented for filling, sealing, and labeling, ensuring quality control and meeting industry standards.
Beverage Industry
In beverage manufacturing, bottle unscramblers handle large volumes of bottles for water, soda, and juice production. High-speed operations in this industry depend on unscramblers to organize bottles efficiently, ensuring smooth transitions between filling, labeling, and capping stages.
Cosmetics
Cosmetic products often come in uniquely shaped bottles that require careful handling. Bottle unscramblers in the cosmetics industry are designed to accommodate various shapes and sizes, ensuring products like lotions, shampoos, and perfumes are packaged without damage.
Maintenance and Troubleshooting
Regular maintenance of bottle unscramblers ensures that they continue to operate at peak efficiency. Key components, such as the hopper, conveyor, and rotary disk, should be cleaned regularly to prevent buildup of debris that could disrupt the unscrambling process.
Inspecting and recalibrating sensors and air jets are also important to ensure that the system correctly identifies and processes bottles. Any misaligned guides or worn-out components should be replaced to prevent jams or misfeeds.
Common troubleshooting issues include misaligned bottles, which are usually caused by improper guide settings, or a failure in the air jet system. Simple adjustments to the sensors or guide rails can resolve most issues, allowing the machine to resume normal operation.
Conclusion
Bottle unscramblers are essential in automating the packaging process, significantly enhancing efficiency by organizing bottles for further processing. Their use of centrifugal force, combined with adjustable guides and sensors, makes them indispensable for industries that handle high volumes of bottles, such as pharmaceuticals, beverages, and cosmetics.
